Descrizione

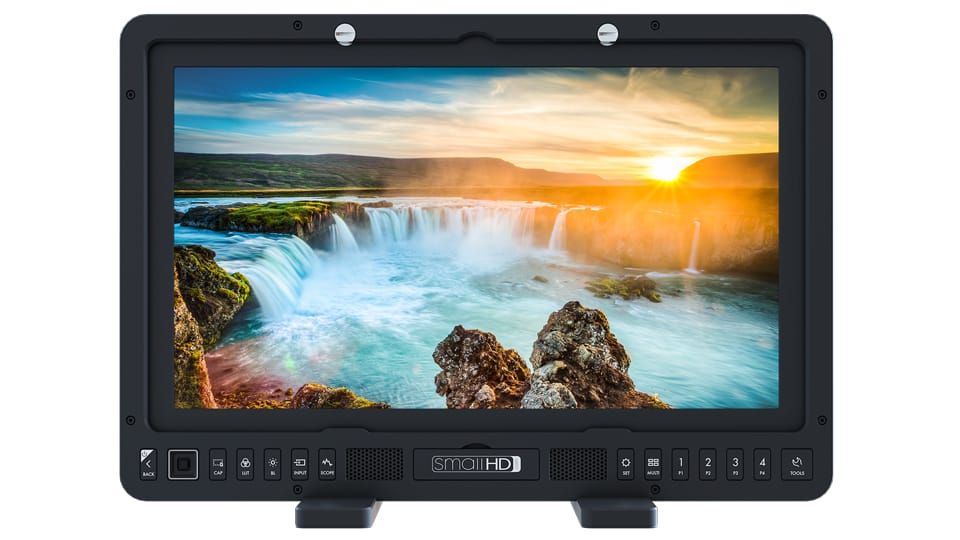

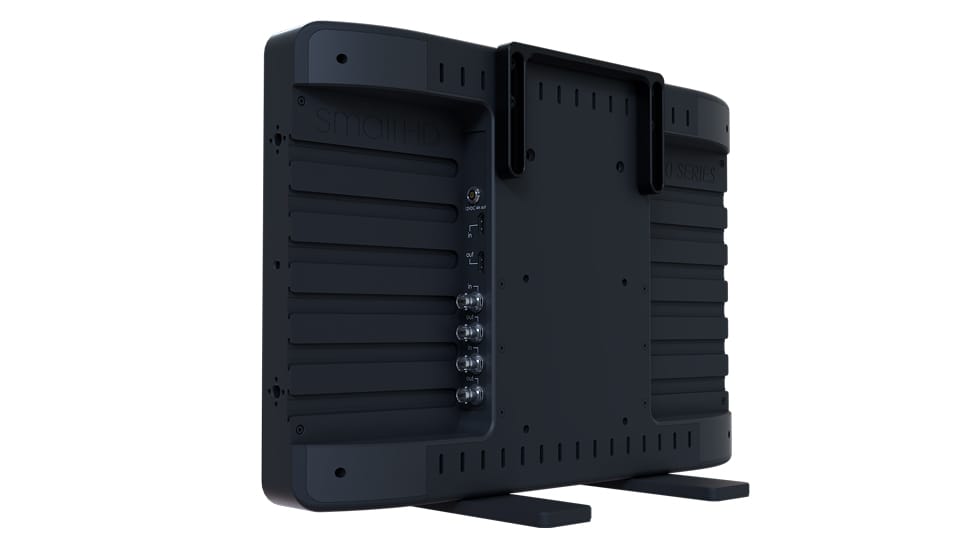

1703 P3X Production/Studio Monitor

Display
Panel Type IPS LCD
Size Diagonal 17
Resolution 1920×1080
Pixel Density (PPI) 133 ppi
Aspect Ratio 16:9
Active Area 16.52
Brightness 900 Nits
Contrast 1400:1
Color Gamut 100% DCI-P3
Color Depth True 10 bit
Viewing Angle 178 degrees Vertical and Horizontal
Backlight Type White LED
Adjustable Backlight Yes – 0 – 100 in 6 steps with 100-nit studio mode
Temperature Adaptive Color No
Input Signal Types/Formats
3G-SDI YCC 4:2:2 @ 10bit: 1920x1080p60, 1920x1080p59.94, 1920x1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI YCC 4:2:2 @ 10bit: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10bit: 480i29.97, 576i25
HDMI Supports YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50
Component Not Supported
Composite Not Supported
Audio HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Output Signal Types/Formats
3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
